CREATOR Arduino module (CREATino)

CREATino allows the user to add custom Arduino libraries to their programs.

[!IMPORTANT] This library only works with the ESP32 gateway and the supported ESP32 boards. You must set up the gateway before using this module.

Using CREATino library functions

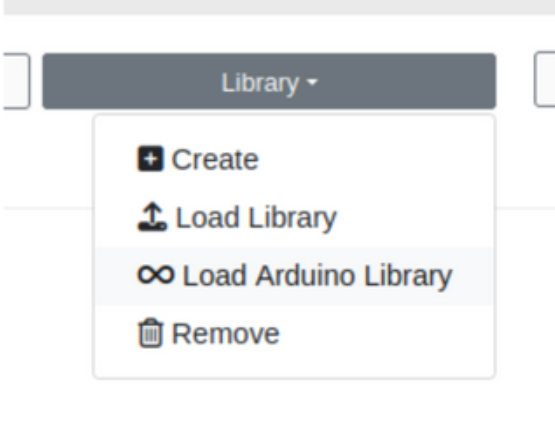

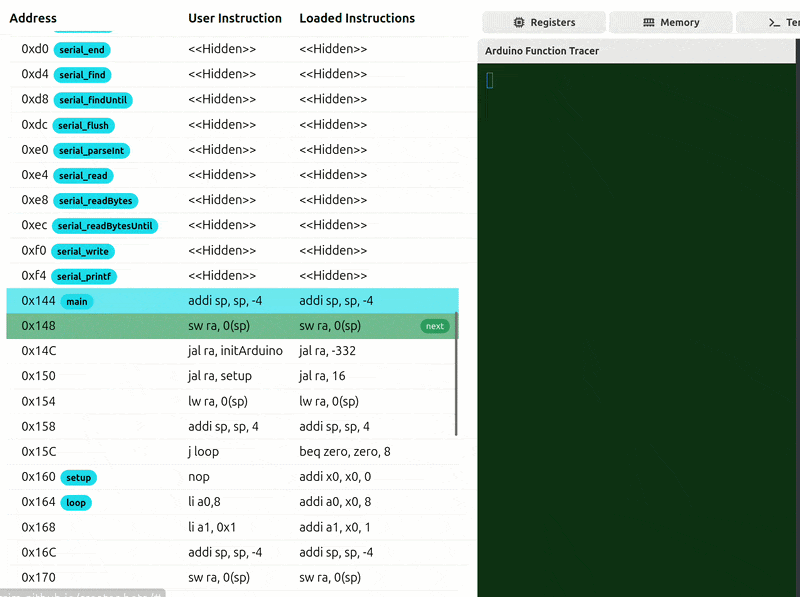

In the Editor view, go to Library → Load Arduino Library. The available functions will be displayed on the right.

[!TIP] Except the printf function (which is excusive for Espressif Arduino devices) all the functions displayed can be found in Arduino's documentation and in Help → Creatino Help.

Creating your first program

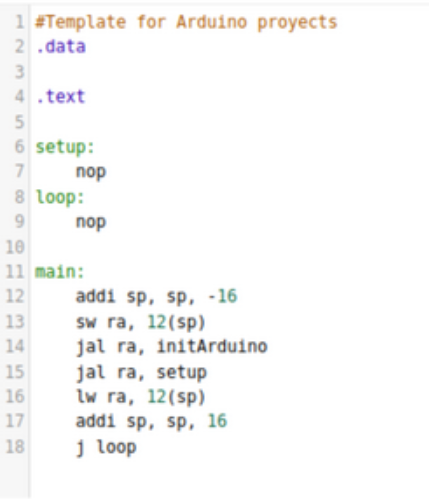

As in the original Arduino sketches, CREATino programs must have a structure composed by a "setup" and a "loop" function. CREATOR provides an example template in Help → Examples → Example 1: Template for new examples.

[!IMPORTANT] Before executing your program in the device, make sure to select the Arduino Support checkbox to enable CREATino.

Aspects to consider when using this library

1. The supported ESP32 boards do not support have floating point operations. Arduino functions with float or double outputs will fail.

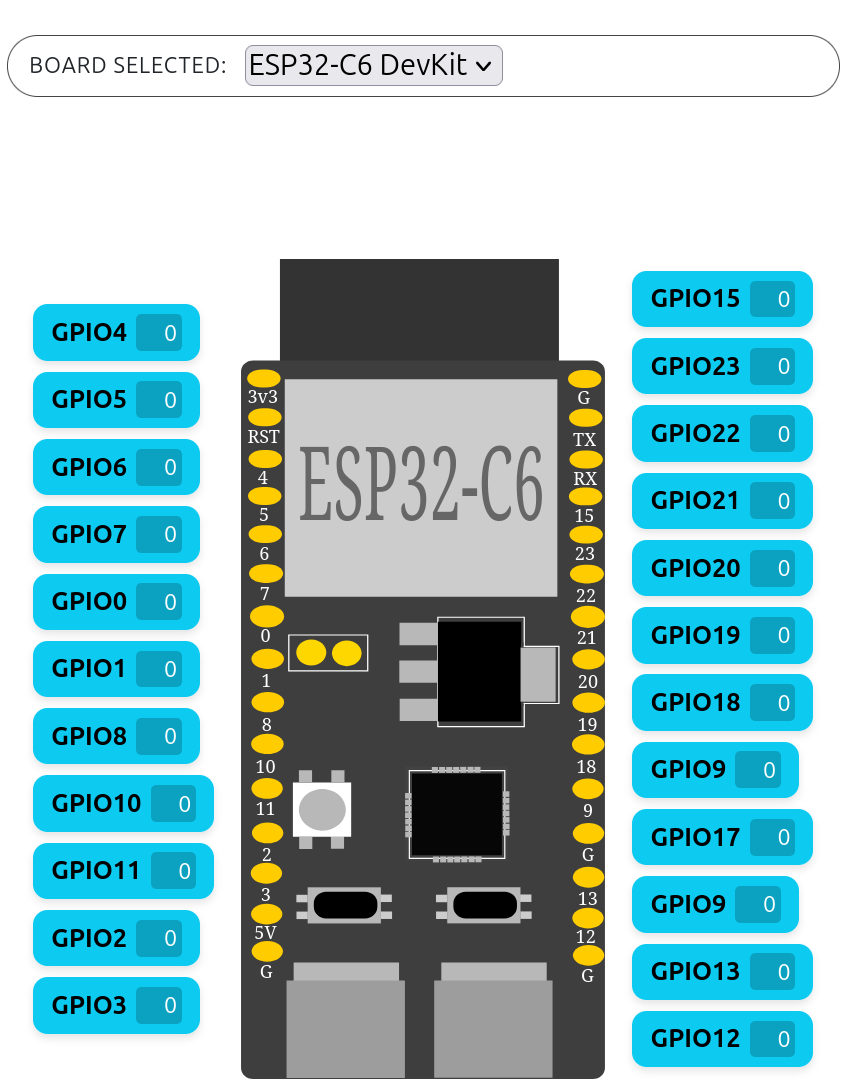

2. Avoid using the following GPIO pins:

   1. GPIO8: BOOT MODE pin. It might show the following error:

      Serial port /dev/ttyUSB0
      Connecting......................................

      A fatal error occurred: Failed to connect to ESP32-C3: Wrong boot mode detected (0x0)! The chip needs to be in download mode.
      For troubleshooting steps visit: https://docs.espressif.com/projects/esptool/en/latest/troubleshooting.html


   2. GPIO 18 and 19: Debug pins

Examples

Example 1: Internal LED Blink

This example is used to check if GPIO functions work correctly inside a ESP32-C3 board.

Components:

• ESP32-C3-DevKitC-02 board

Step 1: Setup

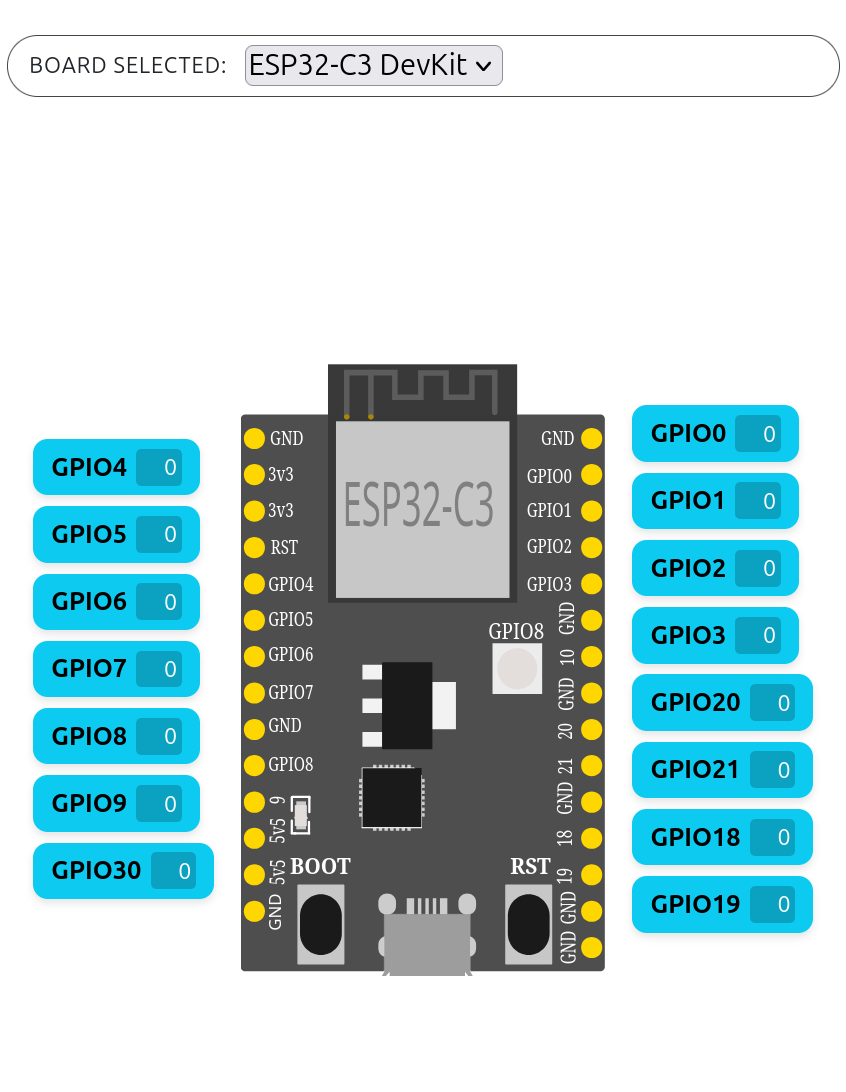

In the ESP32-C3-DevKitC-02, the internal LED pin corresponds to pin 30, and it must be tagged as output. We use pinMode function for this.

The possible values for the mode are:

In this case, our setup function will look like this:

setup:
  # pinMode(30, OUTPUT);
  li a0, 30
  li a1, 0x03
  addi sp, sp, -4
  sw ra, 0(sp)
  jal ra, pinMode
  lw ra, 0(sp)
  addi sp, sp, 4
  jr ra

Step 2: Loop

The LED has been set up; now it is we can try to make it turn on and off, creating a blinking effect. For this, we'll use the digitalWrite function.

This function needs the number of the pin used (pin 30) and the state to write (in this case 0x1 or HIGH to turn on the light and 0x0 to turn it off)

We will also use a delay function to generate a delay, in milliseconds, between changes of state of the LED. For this example, we'll store the length of the delay in memory.

The result is:

.data
  time:
    .word 1000

.text
loop:
  # digitalWrite(LED_BUILTIN, HIGH);
  li a0,30
  li a1, 0x1
  addi sp, sp, -4
  sw ra, 0(sp)
  jal ra, digitalWrite
  lw ra, 0(sp)
  addi sp, sp, 4

  # delay(time);
  la a0, time
  lw a0, 0(a0)
  addi sp, sp, -4
  sw ra, 0(sp)
  jal ra, delay
  lw ra, 0(sp)
  addi sp, sp, 4

  # turn off

  # digitalWrite(LED_BUILTIN, LOW);
  li a0,30
  li a1, 0x0
  addi sp, sp, -4
  sw ra, 0(sp)
  jal ra, digitalWrite
  lw ra, 0(sp)
  addi sp, sp, 4

  # delay(time);
  la a0, time
  lw a0, 0(a0)
  addi sp, sp, -4
  sw ra, 0(sp)
  jal ra, delay
  lw ra, 0(sp)
  addi sp, sp, 4
  j loop

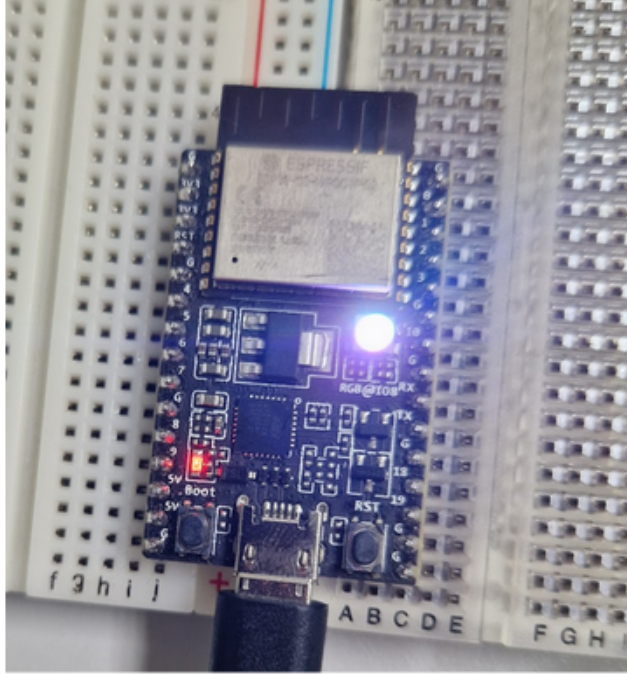

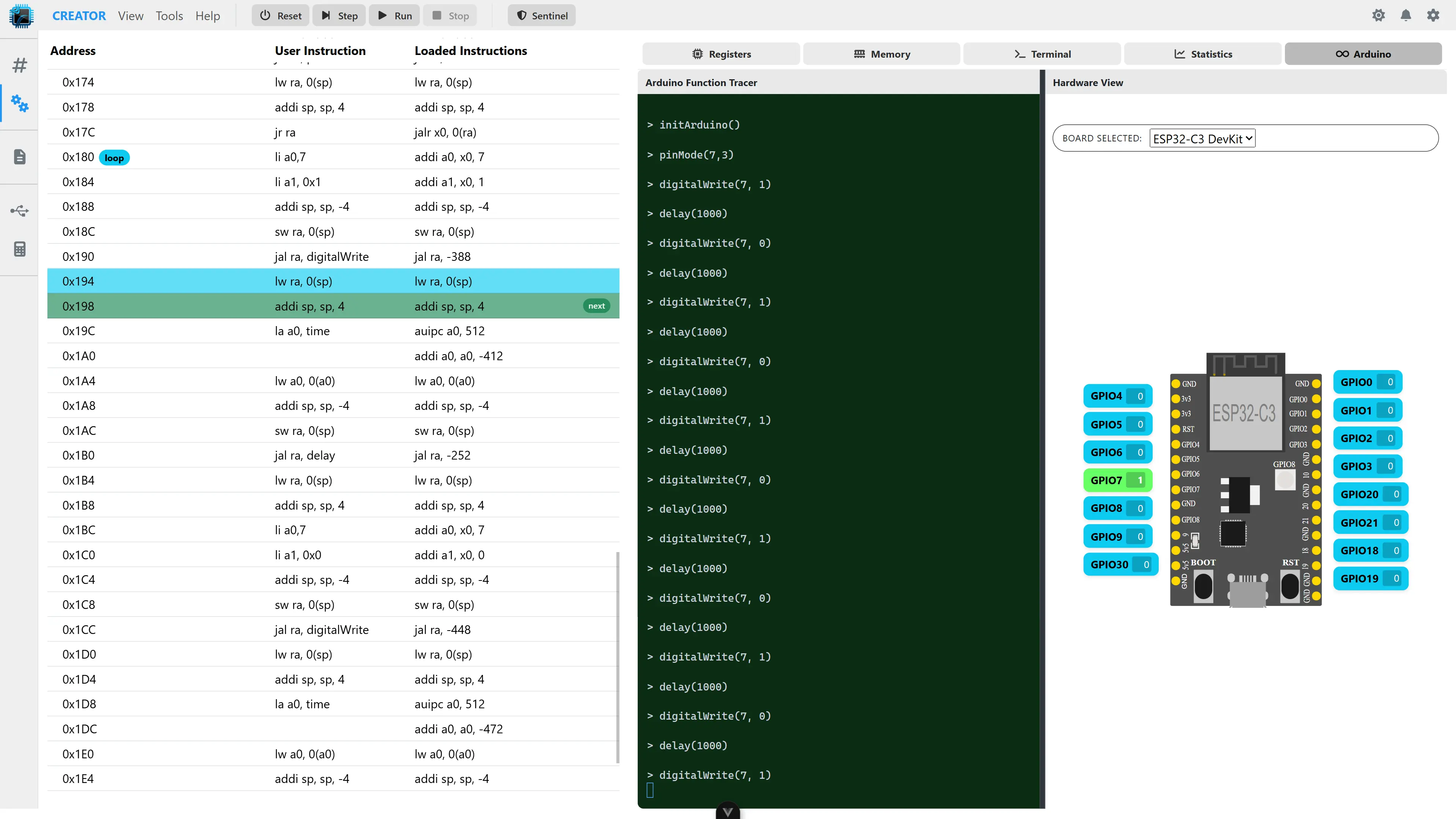

Now the LED will start blinking.

Example 2: Button + LED

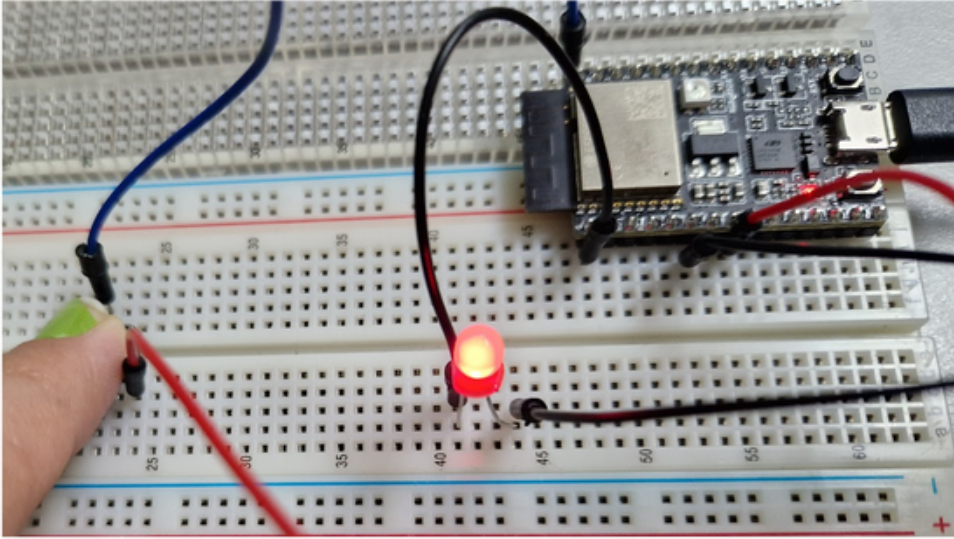

In this example we'll turn an LED on when the button is pressed.

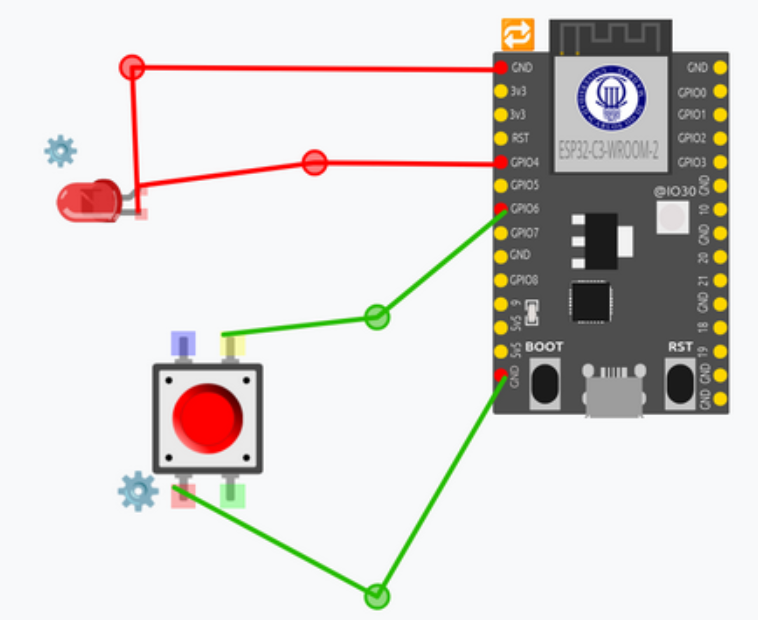

Components:

• ESP32-C3-DevKitC-02 board
• Button (in GPIO 6)
• LED (in GPIO 4)

There are two ways to do this: synchronously, using an infinite loop, and asynchronously, using interrupts.

Using an infinite loop

Step 1: Setup

First we'll establish the LED as an output and the button as input. As shown in Use example 1, you need to configure the pin mode with pinMode before using the pins:

.data
  buttonPin: .word 6
  ledpin:    .word 4

.text

setup:
  # pinMode(buttonPin, INPUT_PULLUP);
  la a0, buttonPin
  lw a0, 0(a0)
  li a1, 0x05  # INPUT_PULLUP
  addi sp, sp, -4
  sw ra, 0(sp)
  jal ra, pinMode
  lw ra, 0(sp)
  addi sp, sp, 4

  # pinMode(ledpin, OUTPUT);
  la a0, ledpin
  lw a0, 0(a0)
  li a1, 0x03  # OUTPUT
  addi sp, sp, -4
  sw ra, 0(sp)
  jal ra, pinMode
  lw ra, 0(sp)
  addi sp, sp, 4

  jr ra

Step 2: Reading the button

Once set up, we start the infinite loop by reading the button state using digitalRead, to which we only need to pass the button’s pin (in this case, pin 6).

In our case, if it detects that the button is pressed, the button_pressed function will be called. Otherwise, the LED will remain off. A small delay is added to avoid overloading the system:

.data
  time:  .word 100

.text
loop:
  la a0, buttonPin
  lw a0, 0(a0)
  addi sp, sp, -4
  sw ra, 0(sp)
  jal ra, digitalRead
  lw ra, 0(sp)
  addi sp, sp, 4

  mv t0,a0

  li t1 ,0 # LOW

  beq t0, t1, button_pressed

  la a0, ledpin
  lw a0, 0(a0)
  li a1, 0x0
  jal ra, digitalWrite

  la a0, time
  lw a0, 0(a0)
  addi sp, sp, -4
  sw ra, 0(sp)
  jal ra, delay
  lw ra, 0(sp)
  addi sp, sp, 4

  j loop

Step 3: Turning the LED on

As shown in Example 1, we will turn on the LED when button is pressed:

button_pressed:
  la a0, ledpin
  lw a0, 0(a0)
  li a1, 0x1
  addi sp, sp, -4
  sw ra, 0(sp)
  jal ra, digitalWrite
  lw ra, 0(sp)
  addi sp, 4

  la a0, time
  lw a0, 0(a0)
  addi sp, sp, -4
  sw ra, 0(sp)
  jal ra, delay
  lw ra, 0(sp)
  addi sp, 4

  jr ra

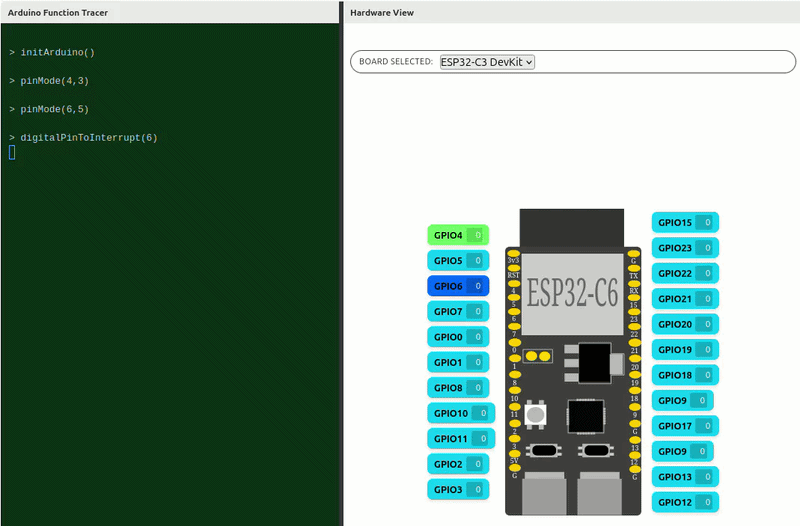

Using interrupts

Another way to achieve this project is by using GPIO interrupts, which are much more immediate but more complex to program.

In this case, we will use the attachInterrupt and digitalPinToInterrupt Arduino functions to obtain the interrupt number that can be assigned to the interrupt service routine for that pin.

Step 1: Setup

As shown in Example 1, you need to configure the pin mode with pinMode before using the pins. Then we connect the button pin to an interrupt routine or ISR (which we will call blink) that runs automatically when the button is pressed. For this we will use attachInterrupt function.

The attachInterrupt function takes the following parameters:

• The interrupt position corresponding to the pin for which we want to detect the interrupt (we use digitalPinToInterrupt(pin))
• The memory address where the interrupt service routine is located (in this case, we call it blink)
• The interrupt mode, that can be one of the following:

In this case, as we want the interruption when the button is pressed, we choose the ON_LOW mode.

This is how the setup function will look:

.data
  ledPin:       .byte 4
  interruptpin: .byte 6
  state:        .byte 0  #LOW
  on_low:       .byte 0x04

.text
setup:
  # pinMode(ledPin, OUTPUT);
  la t1, ledPin
  lb a0, 0(t1)
  li a1, 0x03  # OUTPUT
  addi sp, sp, -4
  sw ra,0(sp)
  jal ra, pinMode
  lw ra,0(sp)
  addi sp, sp, 4

  # pinMode(ledPin, INPUT_PULLUP);
  la t1, interruptpin
  lb a0, 0(t1)
  li a1, 0x05  # INPUT_PULLUP
  addi sp, sp, -4
  sw ra,0(sp)
  jal ra, pinMode
  lw ra,0(sp)
  addi sp, sp, 4

  # digitalPinToInterrupt(interruptpin);
  la t1, interruptpin
  lb a0, 0(t1)
  addi sp, sp, -4
  sw ra,0(sp)
  jal ra, digitalPinToInterrupt
  lw ra,0(sp)
  addi sp, sp, 4


  # attachInterrupt(digitalPinToInterrupt(interruptPin), blink, ON_LOW);
  la a1, blink
  la t1, on_low
  lb a2, 0(t1)
  addi sp, sp, -4
  sw ra,0(sp)
  jal ra, attachInterrupt
  lw ra,0(sp)
  addi sp, sp, 4

  jr ra

Step 2: ISR definition.

We want to change the LED state when an interrupt is detected (the button's state changes). For that, we'll modify a variable stored in memory that indicates the LED’s state, as follows:

blink:
  addi sp, sp, -8
  sw ra, 4(sp)
  sw t0, 0(sp)

  la t0, state
  lb a0, 0(t0)
  xori a0, a0, 1  # 0->1, 1->0
  sb a0, 0(t0)
  lw t0, 0(sp)
  lw ra, 4(sp)
  addi sp, sp, 8
  jr ra

Step 3: Loop

The LED will be turned off until the button is pressed, as shown in the following code:

loop:

  # digitalWrite(ledPin, state);
  la t1, ledPin
  lb a0, 0(t1)
  li a1,0
  addi sp, sp, -4
  sw ra,0(sp)
  jal ra, digitalWrite
  lw ra,0(sp)
  addi sp, sp, 4

  # delay(100)
  li a0, 100
  addi sp, sp, -4
  sw ra,0(sp)
  jal ra, delay
  lw ra,0(sp)
  addi sp, sp, 4
  j loop

setup:

  # pinMode(ledPin, OUTPUT);
  la t1, ledPin
  lb a0, 0(t1)
  li a1, 0x03 #OUTPUT
  addi sp, sp, -4
  sw ra,0(sp)
  jal ra, pinMode
  lw ra,0(sp)
  addi sp, sp, 4

  # pinMode(ledPin, INPUT_PULLUP);
  la t1, interruptpin
  lb a0, 0(t1)
  li a1, 0x05  # INPUT_PULLUP
  addi sp, sp, -4
  sw ra,0(sp)
  jal ra, pinMode
  lw ra,0(sp)
  addi sp, sp, 4

  # digitalPinToInterrupt(interruptpin);
  la t1, interruptpin
  lb a0, 0(t1)
  addi sp, sp, -4
  sw ra,0(sp)
  jal ra, digitalPinToInterrupt
  lw ra,0(sp)
  addi sp, sp, 4

  # attachInterrupt(digitalPinToInterrupt(interruptPin), blink, CHANGE);
  la a1, blink
  la t1, change
  lb a2, 0(t1)
  addi sp, sp, -4
  sw ra,0(sp)
  jal ra, attachInterrupt
  lw ra,0(sp)
  addi sp, sp, 4

  jr ra

Example 3: Text input/output using serial output

For this use case, we are going to make a little use of basic functions from the Arduino Serial library. For more information, here is the official documentation (not all functions are available in this library, as they are not the most suitable for the environment in which we are working).

[!WARNING] By definition, serial input functions are very fast (they do not wait for you to press Enter) and do not display a callback of what has been written. The purpose of this library is to familiarize yourself with these functions; therefore, it is the student's responsibility to monitor each step of what is being done.

Just as we previously used the ecall instruction to print messages in assembly CREATOR programs, here we will use the serial_printf function, which is part of Espressif's Arduino component.

Unlike higher-level functions like Serial.print and Serial.println, serial_printf requires explicit format specifiers to indicate the data types being printed; otherwise, the output is interpreted as a string.

On the other hand, we will use the serial_readBytes function to see how text input works. There is the serial_read variant (which only takes 1 character), serial_readBytesUntil (which stops storing characters when it finds the specified character), and those that parse, such as serial_parseInt (which only takes numbers).

Components: ESP32-C3-DevKitC-02 board

1. Data: Save messages to print in memory. For this use case we are going to declare in data section:

   • The initial message to be displayed.
   • The buffer allocated to store the input text.
   • The message that includes a placeholder for outputting the entered text.
   • An auxiliary callback used to display the entered number.

   This would be reflected in the code as follows:

   .data
    space:   .zero 100 #Buffer to place the string
    initial: .string "Introduce number of letters:\n"
    aux: .string "%d\nType your message\n"
    print:  .string "Your message: %s\n"


2. Serial: Start terminal output and input. On most boards, such as Arduino and Espressif, in order to use the terminal, it needs to be initialized with a specific frequency. In this case, we will use the serial_begin function with a baud rate of 115200.

   If a value other than the one given is entered, strange characters may be printed or nothing may be printed at all.

   It is declared in the code as follows:

   setup:
    li a0,115200
    addi sp, sp, -4
    sw ra, 0(sp)
    jal ra, serial_begin
    lw ra, 0(sp)
    addi sp, sp,4
    jr ra


3. Loop: Check if the terminal is correctly open. A good practice that can be seen in Arduino is to use serial_available to see if the terminal has opened correctly.

   If it has a value greater than 0, it means that it is operational and ready to use.

   [!NOTE] For simplicity's sake, you will often find that this check is not performed... but using serial_available is a very good error control.

   So, we start our loop as follows:

   loop:
      addi sp, sp, -4
      sw ra, 0(sp)
      jal ra, serial_available
      lw ra, 0(sp)
      addi sp, sp, 4
      beqz a0,aux_print
      j loop


   aux_print is an auxiliary function to indicate to the user that they should enter the number only once. This is purely aesthetic but can provide clarity to the user.

   aux_print:
      #serialPrintf
      la a0,initial
      addi sp, sp, -4
      sw ra, 0(sp)
      jal ra, serial_printf
      lw ra, 0(sp)
      addi sp, 4
      j read_num


   read_num: reads a number from terminal

   In this case, we use the serial_parseIntfunction to get a number per terminal.

   [!NOTE] Why don't we use serial_read? Because serial_read, although it returns a number, interprets the input in ASCII code. ️

   If we enter the number 4 via the terminal, the values change:

   • In serial_read: 52
   • In serial_parseInt: 4

   Since serial_read is very fast, we will not move on to the next step if there is no number greater than 0 collected in a0, leaving the following code snippet:

   read_num:
      addi sp, sp, -4
      sw ra, 0(sp)
      jal ra, serial_parseInt
      lw ra, 0(sp)
      addi sp, sp,4mv t0, a0
      bnez t0, print_int
      j read_num


   A small auxiliary function called print_int was created to view the callback of the value specified as length, as follows.

   print_int:
    la a0, aux
    mv a1,t0
    addi sp, sp, -4
    sw ra, 0(sp)
    jal ra, serial_printf
    lw ra, 0(sp)
    addi sp, 4
    j read_function


   The read_function reads the text of the requested length. Once we have the length of our string, we collect the text we want to add with serial_readBytes, which is blocking until the requested length of characters has been reached.

   We would end up with an implementation like this:

   read_function:
    la a0, space
    mv a1, t0 # number of letters it will have
    addi sp, sp, -4
    sw ra, 0(sp)
    jal ra, serial_readBytes
    lw ra, 0(sp)
    addi sp, sp, 4
    bne t0, a0, read_function
    la a0, print
    la a1, space
    addi sp, sp, -4
    sw ra, 0(sp)
    jal ra, serial_printf
    lw ra, 0(sp)
    addi sp, 4
    jr ra

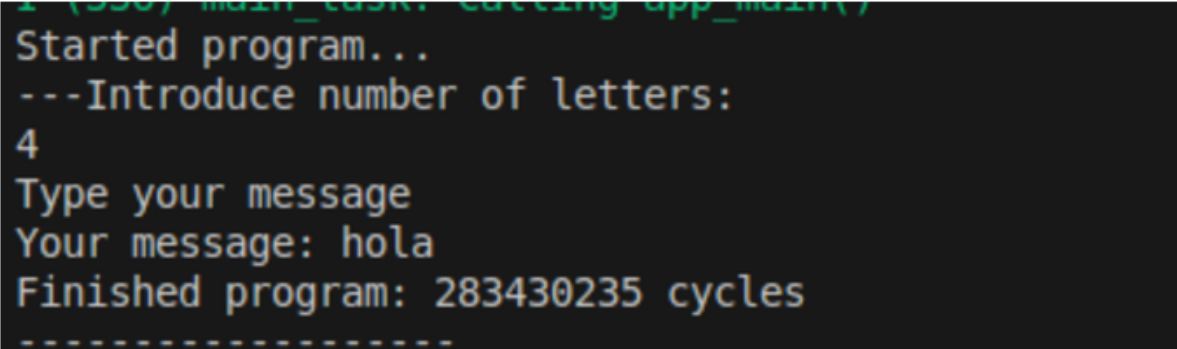

And this is the result!

Example 4: Daytime running lights with analogRead.

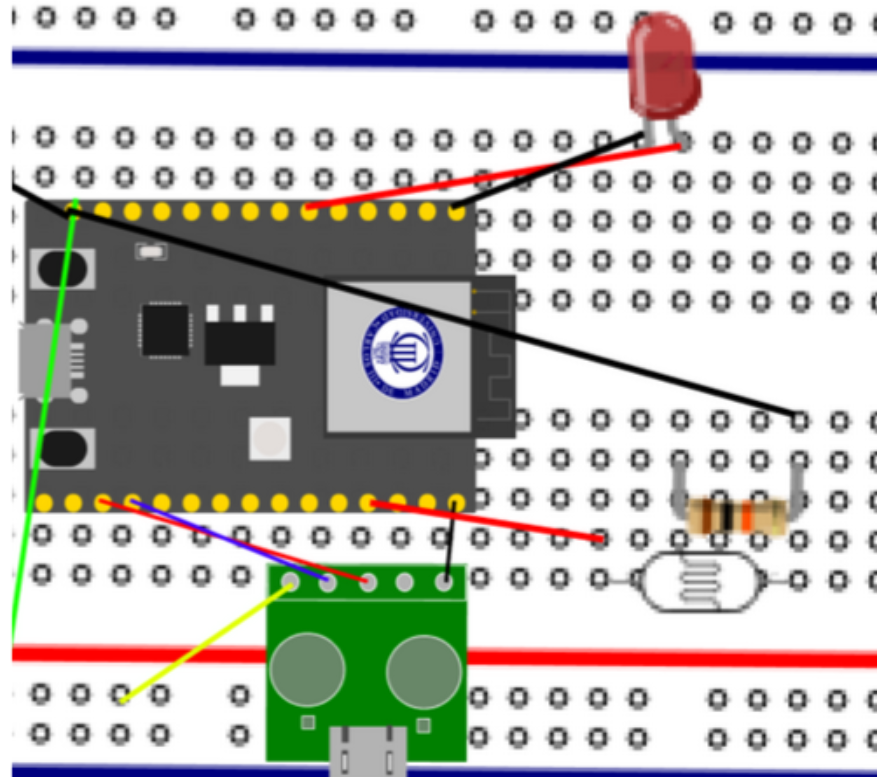

This time, we are going to make a small LED that lights up when it detects low light, using an LDR.

[!WARNING] The sensitivity values of the sensor may vary depending on the location of the student and their device. We recommend having a flashlight or something that gives off light handy and using the debugger or prints.

Components:

• ESP32-C3-DevKitC-02 board
• LDR or photoresistor (in GPIO 2)
• LED (in GPIO 4)
• 10kΩ resistor

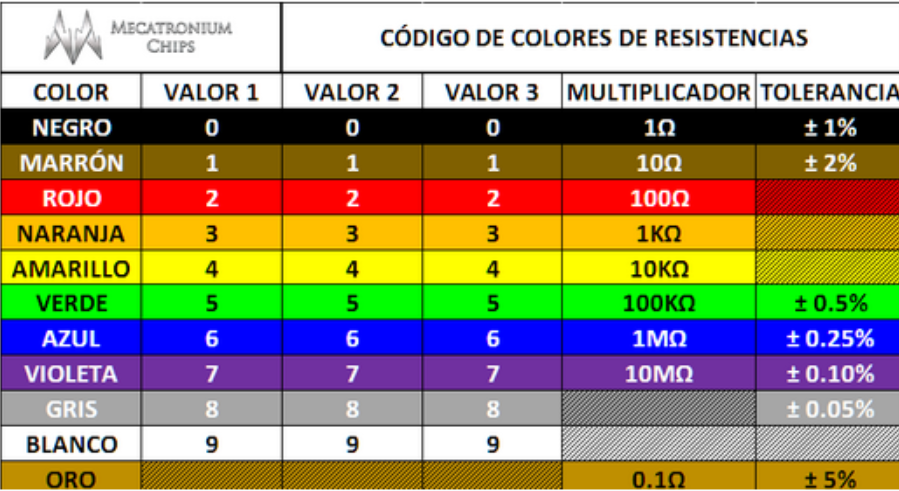

To find resistors with the correct value, look at the color code on their bands. You can either look at the color guide, use this calculator, or simply look for a resistor that matches the one in the photo.

1. Setup: Initialize LDR, pin, and serial output. To use the sensor, we must initialize it with pinMode to the value of INPUT (0x01) as we saw in Figure 2.1. The setup code would look like this:

   .data
      lightSensorPin: .word 2
      ledPin: .word 4
      time: .word 100
      aux_msg: .string "LDR value: %d\n"

   .text
   setup:
    # Serial
    li a0,115200
    addi sp, sp, -4
    sw ra, 0(sp)
    jal ra, serial_begin
    lw ra, 0(sp)
    addi sp, sp,4

    # PinMode LED
    la t1, ledPin
    lw a0, 0(t1)
    li a1, 0x03 # OUTPUT
    addi sp, sp, -4
    sw ra,0(sp)
    jal ra, pinMode #pinMode(ledPin, OUTPUT);
    lw ra,0(sp)
    addi sp, sp, 4

    # Light sensor pin
    la t1, lightSensorPin
    lw a0, 0(t1)
    li a1, 0x01
    addi sp, sp, -4
    sw ra,0(sp)
    jal ra, pinMode# pinMode(lightSensorPin, INPUT);
    lw ra,0(sp)
    addi sp, sp, 4

    jr ra


2. Loop: Analog sensor reading Once everything is up and running, we read the light level in the room using analogRead.

   In this tutorial, after a few tests, we found that the values reached were between 1100 and 1400. The darker it is, the higher the resistance value will be. Therefore, a threshold of 1200 is set.

   • If the sensor reaches a value higher than 1200, the LED will turn on (lightUp).
   • If, on the other hand, it does not reach that value, the LED remains off (turnDown).

   In both cases, we add a small delayso that the readings are not so fast.

   We finish with this code:

    # delay
        la a0, time
    lw a0, 0(a0)
    addi sp, sp, -4
    sw ra, 0(sp)
    jal ra, delay
    lw ra, 0(sp)
    addi sp, sp, 4

    j loop

   loop:
    # read LDR
    addi sp, sp, -4
    sw ra,0(sp)
    jal ra, analogRead #analogRead(lightSensorPin);
    lw ra,0(sp)
    addi sp, sp, 4

    # Print value
    mv t1, a0
    mv a1,a0
    la a0,aux_msg
    addi sp, sp, -4
    sw ra, 0(sp)
    jal ra, serial_printf
    lw ra, 0(sp)
    addi sp, sp, 4

    # turn up led
    li t0, 1200 #Minumun value
    bgt t1, t0, lightUp
    blt t1, t0, turnDown

    j loop


And this is the result:

Example 5: [Advanced] Piano

This case is a little more complex than the rest, but very creative. It is recommended to have a breadboard with plenty of space.

Each musical note is a frequency that blows air into the buzzer membrane. Consult this page to learn how to calculate the other possible notes according to the desired tempo.

In this case, we are going to do it with interruptions. This example may cause a little more lag because there are continuous memory accesses and the “tone” function launches tasks.

Polling could be used.

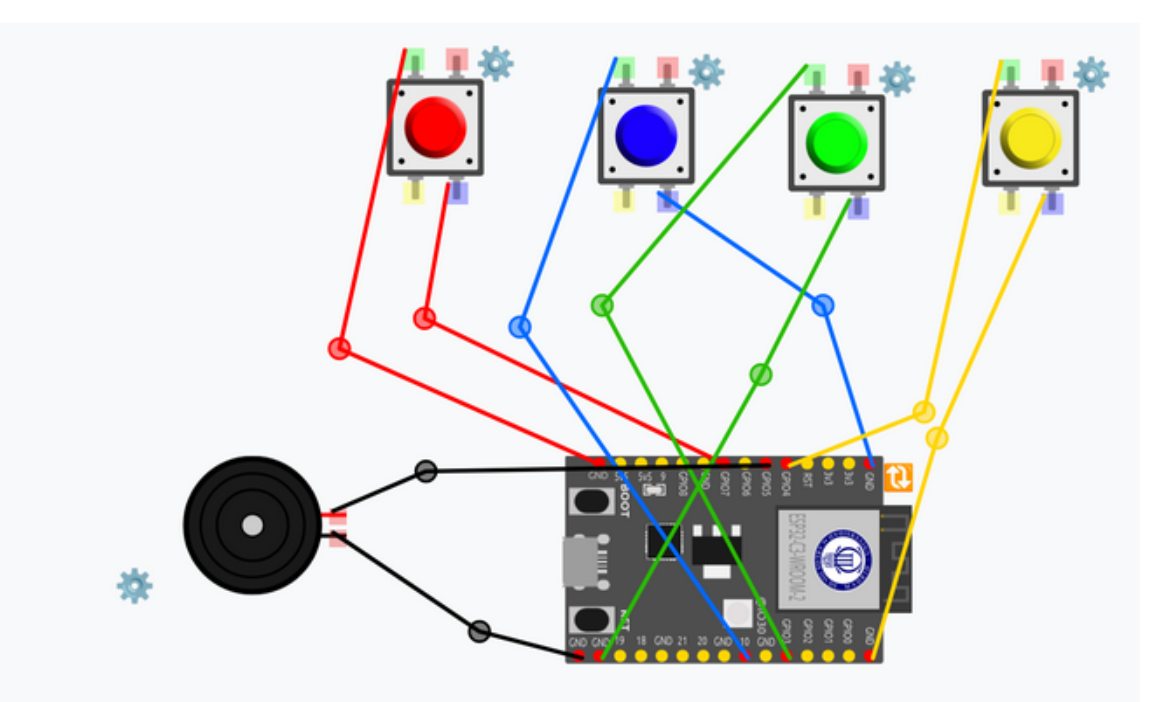

Components::

• ESP32-C3-DevKitC-02 board
• 4 buttons
• A passive buzzer

1. Data: Declaration of pins and values of musical notes. We indicate in the data the pins we are going to use (avoiding "dangerous" pins such as GPIO8 and GPIO1) and the frequency values of the musical notes.

   Care must be taken with the position of these values, as we are going to use these memory positions as arrays.

   In this example, we have positioned them as follows:

   .data
    # GPIO
    buzzerPin: .word 5
    button_C4: .word 7
    button_D4: .word 10
    button_E4: .word 3
    button_G4: .word 4

    # Notes
    note_C4: .word 262
    note_D4: .word 294
    note_E4: .word 330
    note_G4: .word 392
    #aux
    button_count: .word 4
    time_delay: .word 10
    anyPressed: .word -1
    .align 4
    button_handlers:
        .word handleButton0
        .word handleButton1
        .word handleButton2
        .word handleButton3


   Another way to position them is like this:

   .data
    # GPIO
    buzzerPin: .word 5
    buttons:   .word 7,10,3,4

    # Notes
    notes:     .word 262,294,330,392

    # aux
    button_count: .word  4
    anyPressed:   .byte -1

   .align 4
    button_handlers:
    .word handleButton0
    .word handleButton1
    .word handleButton2
    .word handleButton3


2. Setup: Configure all pins In this case, we are going to complicate things a little, as there are a lot of pins to configure. First, we will configure pin 5 of the buzzer, which, unlike the buttons, will use an OUTPUT mode (since it emits a sound to the outside).

   setup:
    # buzzer
    la a0, buzzerPin
    lw a0, 0(a0)
    li a1,  0x03 #OUTPUT
    addi sp, sp, -4
    sw ra, 0(sp)
    jal ra, pinMode
    lw ra, 0(sp)
    addi sp, sp, 4


   Then, to configure the rest of the buttons, we created a loop that goes through all the selected buttons.

   First, in setup, after initializing the buzzer, we initialize the variables in our loop:

    la  s0, button_C4  # Button list
    li  s1, 0  # Position in the list
    la  t3, button_count
    lw  s2, 0(t3)  # List length


   Next, we move on to the loop_buttons function, where we will:

   • Check if we have already gone through the entire list

     loop_buttons:
        bge  s1, s2, end_loop_buttons  # loop until all the buttons are positioned


   • If this is not the case, we scroll through the data to find the pin number we want.

      # Take position of the button
      slli s3, s1, 2
      add  t1, s0, s3 #shift
      lw   s4, 0(t1) #Button value
      mv a0,s4


   • Once the position has been obtained, we configure the button with INPUT_PULLUP mode, as they are buttons.

      li a1,  0x05 #INPUT_PULLUP
      addi sp, sp, -4
      sw ra, 0(sp)
      jal ra, pinMode
      lw ra, 0(sp)
      addi sp, sp, 4


   • As we indicated in the statement, we are going to use interrupts, so we have to assign them now knowing which button we are on (that is, we take advantage of the fact that the order of button_handlers is the same as the order followed by the button array). For more information on how to assign interrupts, see example 2. We will indicate what the ISRs are like in the next point:

      # Attach Interrupts
      # Transform digitalPin into interrupt
      mv a0, s4
      addi sp, sp, -4
      sw ra,0(sp)
      jal ra, digitalPinToInterrupt #digitalPinToInterrupt(interruptpin);
      lw ra,0(sp)
      addi sp, sp, 4
      # Search the correct pointer
      la t0, button_handlers
      add t1, t0, s3
      lw a1, 0(t1)
      # Let the interrupt jump when button is pressed (on_low)
      li a2, 0x03
      addi sp, sp, -4
      sw ra,0(sp)
      jal ra, attachInterrupt #attachInterrupt(digitalPinToInterrupt(buttonPin[i]), handler[i], ON_LOW);
      lw ra,0(sp)
      addi sp, sp, 4


   • We add up a position and re-enter the loop

      addi s1, s1, 1                     # next button
      j    loop_buttons


   • If we have finished going through the list, we return to main by executing a ret (or a jr ra).

     end_loop_buttons:
        ret


3. Loop: This step can be done in two ways: with polling (i.e., constantly checking the status of all buttons) or with interrupts (pressing the button triggers an interrupt). The easiest way to do this exercise is to assign an interrupt to each button and, when pressed, have each one have its own ISR. Therefore, before starting the loop, we will create each of the necessary ISRs and assign them to the buttons. Refer to case 2 using interrupts for a better understanding.

   In this case, we use a "flag" change since the tone() function underneath launches "tasks" or "processes" underneath, which is not safe to do in an ISR.

   # ISR
   handleButton0:
    la t0, anyPressed
    lw t1, 0(t0)
    li t2, 0 # Assign button
    sw t2, 0(t0)
    jr ra

   handleButton1:
    la t0, anyPressed
    lw t1, 0(t0)
    li t2, 1 # Assign button
    sw t2, 0(t0)
    jr ra

   handleButton2:
    la t0, anyPressed
    lw t1, 0(t0)
    li t2, 2 # Assign button
    sw t2, 0(t0)
    jr ra

   handleButton3:
    la t0, anyPressed
    lw t1, 0(t0)
    li t2, 3 # Assign button
    sw t2, 0(t0)
    jr ra


   Then, inside the loop, we check the status of the anyPressed flag and add a small delay so that the watchdog does not trip.

   This loop checks that, if the flag is not at -1, the tone corresponding to that position sounds.

   loop:
    la t0, anyPressed
    lw s0,0(t0)
    li t1, -1
    bne s0, t1, startTune
    la t0, time_delay
    lw a0, 0(t0)
    addi sp, sp, -4
    sw ra,0(sp)
    jal ra, delay #delay(200);
    lw ra,0(sp)
    addi sp, sp, 4
    j loop


4. startTune: start playing the tone

In this case, once we have the position of the button that has been pressed, we search the memory array for the corresponding note value, similar to when we searched for the button.

To prevent the tone from having an indefinite duration, we have set a timeout of 200. Once the tone is played, it returns to the loop.

startTune:
  # Clean value
  la t0, anyPressed
  li t1, -1
  sw t1, 0(t0)

  # Search value
  la t0, note_C4
  slli s1, s0, 2
  add t1,s1,t0
  lw s2, 0(t1) # Note value

  # Play Tone
  la t0, buzzerPin
  lw a0, 0(t0)
  mv a1,s2
  li a2, 200

  # tone(buzzerPin, notes[i], duration);
  addi sp, sp, -4
  sw ra,0(sp)
  jal ra, tone
  lw ra,0(sp)
  addi sp, sp, 4

  j loop

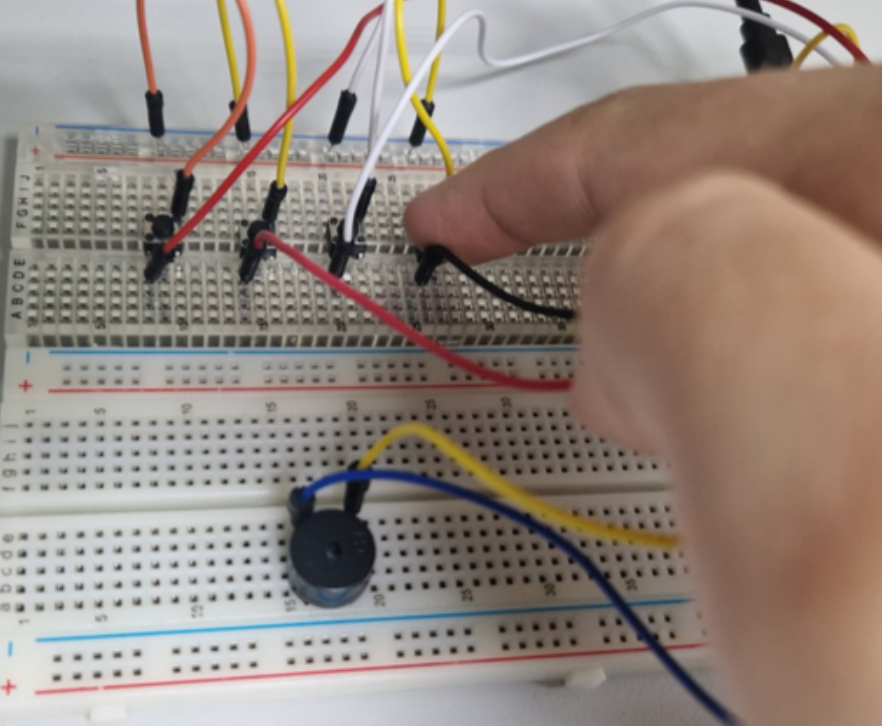

And there we have our piano:
