CREATOR Gateway
CREATOR supports the execution of RISC-V programs in real hardware devices.
Supported devices
CREATOR supports Espressif ESP32 development boards and RISC-V SBCs.
Espressif ESP32
Espressif's family of ESP32 MCUs.
esp32c3- ESP32-C3-DevKitC-02 (includes JTAG)
- ESP32-C3-DevKitM-1 (no JTAG detected)
esp32c6- ESP32-C6-DevKitC-1 (JTAG + port included)
- ESP32-C6-DevKitM-1 (JTAG + port included)
esp32h2- ESP32-H2-DevKitM-1 (JTAG + port)
These use the creator-gateway-esp32.
Single-Board Computers
RISC-V SBC boards with Linux that can run SSH and GDBGUI. At the moment, SBC RISC-V boards with Ubuntu 24.04.3 for RISC-V fulfill these requirements.
- OrangePi RV2: 8 RISC-V cores, Wi-Fi and Bluetooth conection
- Nezha D1-H 64 bit RISC-V: Single-core RISC-V64. It does not offer Wi-Fi conection or a GUI
These use the creator-gateway-sbc.
Executing the ESP32 gateway
Docker execution
This is the recommended way of executing the gateway on Windows, Linux, or macOS.
For more information, see the IDF documentation.
Windows
- Install Docker Desktop
- Connect your device and check which port it belongs to. You can do this with the
modeterminal command, or in the Device Manager. The default port isCOM3. - Setup the Remote Serial Port
- Download and unzip esptool
- Run
esp_ffc2217_serverin the device's port (e.g.COM3):esp_rfc2217_server -v -p 4000 COM3
Run the container:
docker run --init -it --device="rfc2217://host.docker.internal:4000?ign_set_control" -p 8080:8080 -p 5000:5000 --name creator-gateway-esp32 creatorsim/creator-gateway-esp32[!TIP] You can also use a Docker compose file (
compose.yaml):- Create the following
compose.yamlfile:services: creator-gateway-esp32: image: creatorsim/creator-gateway-esp32:latest ports: - "8080:8080" # gateway - "5000:5000" # gdbgui stdin_open: true tty: true # for debug network_mode: bridge extra_hosts: - "host.docker.internal:host-gateway" - Deploy the docker compose in the directory of the YAML file:
docker compose up
Take into account that
docker compose upis not interactive, therefore the program won't be able to read the inputs. You can rundocker compose up -dand then attach to the specific container (check its name/id withdocker ps) withdocker attach <container>.- Create the following
Linux/macOS
- Install Docker engine (or Docker Desktop)
Connect your device and check which port it belongs to. It typically resides in
/dev/, e.g./dev/ttyUSB0. You can quickly check it withls /dev/ttyUSB*(Linux) orls /dev/cu.usbserial-*(macOS).[!IMPORTANT] If you're using macOS, set up the Remote Serial Port:
- Download and unzip esptool
- Run
esp_ffc2217_serverin the device's port (e.g./dev/ttyUSB0):esp_rfc2217_server -v -p 4000 /dev/ttyUSB0
Run the container:
docker run --init -it --device=/dev/ttyUSB0 -p 8080:8080 -p 5000:5000 --name creator-gateway-esp32 creatorsim/creator-gateway-esp32[!TIP] You can also use a Docker compose file (
compose.yaml):- Create the following
compose.yamlfile:services: creator-gateway-esp32: image: creatorsim/creator-gateway-esp32:latest ports: - "8080:8080" # gateway - "5000:5000" # gdbgui stdin_open: true tty: true devices: - /dev/ttyUSB0 # device port # for debug network_mode: bridge extra_hosts: - "host.docker.internal:host-gateway" - Deploy the docker compose in the directory of the YAML file:
docker compose up
Take into account that
docker compose upis not interactive, therefore the program won't be able to read the inputs. You can rundocker compose up -dand then attach to the specific container (check its name/id withdocker ps) withdocker attach <container>.- Create the following
Setting up the debugger
The debugger is only available in boards with JTAG, and both USB and SERIAL ports must be connected to the computer.

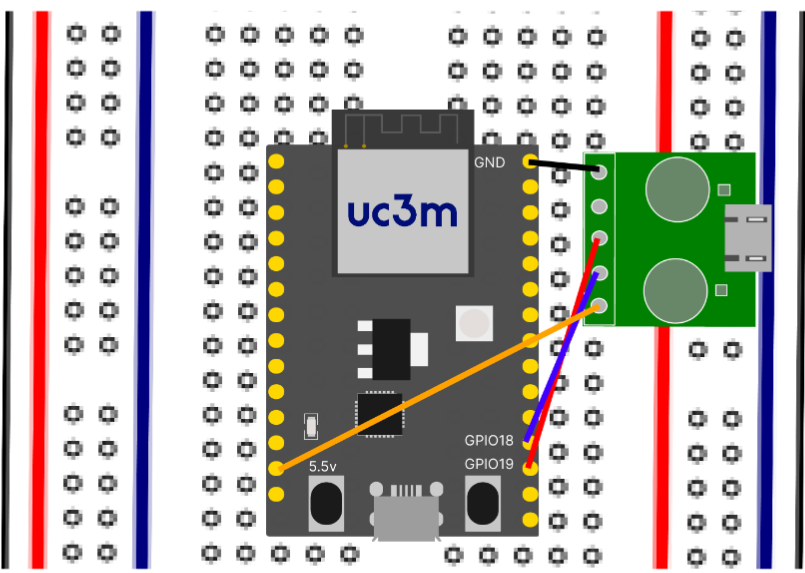

[!TIP] For boards without the secondary port on the board, but with JTAG support, you can wire a daughter board as such:
Linux/macOS
- Download our OpenOCD scripts
- Download OpenOCD with ESP32 JTAG support v0.12.0-esp32-20241016 (for your OS and architecture) and unzip it
- Add the
bin/folder to your PATH, e.g.:export PATH="/full/path/to/openocd-esp32/bin:$PATH" - Set the
OPENOCD_SCRIPTSenvironment variable:export OPENOCD_SCRIPTS="/full/path/to/openocd-esp32/share/openocd/scripts" - Execute the
openocd_start.shscript with the type of device (e.g.esp32c3)./openocd_start.sh esp32c3
Windows
- Download our OpenOCD scripts
- Install and setup Zadig

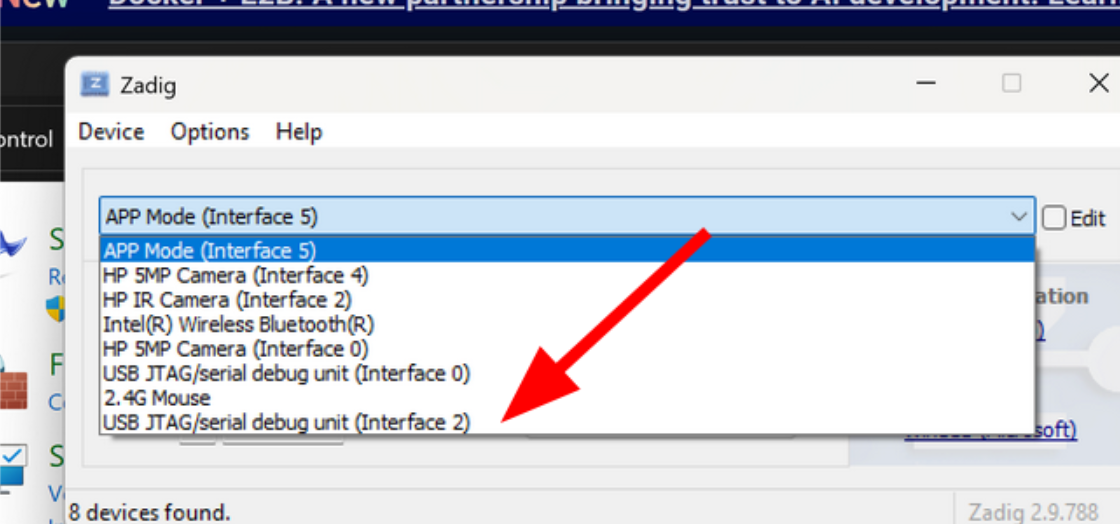

- List all the devices in
Options>List All Devicesand selectUSB Jtag/serial debug unit (Interface 2)

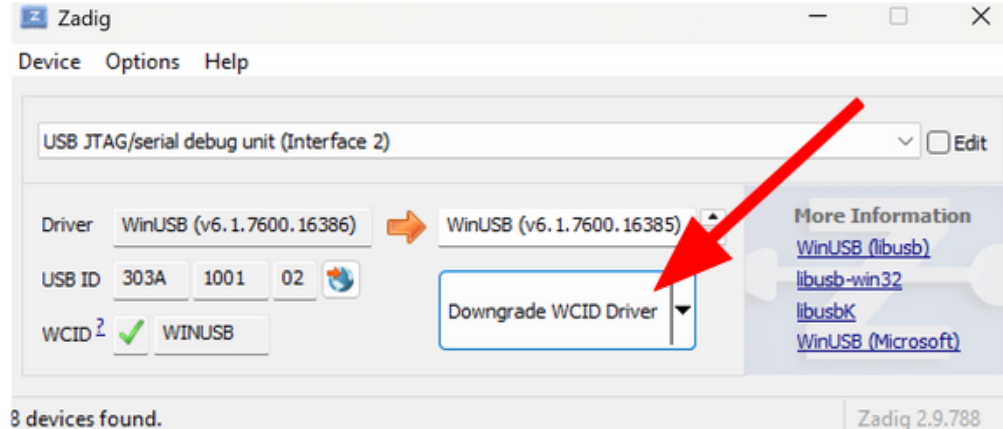

- Downgrade the driver

- List all the devices in
- Setup OpenOCD
- Download OpenOCD with ESP32 JTAG support v0.12.0-esp32-20241016 (for your OS and architecture) and unzip it
- Add the
bin\folder to your PATH, e.g.:set PATH=%PATH%;<openocd-esp32 path>\bin\
- Execute the
openocd_start.batscript with the type of device (e.g.esp32c3).\openocd_start.bat esp32c3
Native execution (Linux-only)
You can run the gateway natively on your Linux device.
- Install Python 3.9
- Install the ESP-IDF framework v5.3.2
- Follow the instructions from Espressif's documentation.
- To ensure Python 3.9 is used for the installation, first create a virtual environment in
~/.espressif/python_env/idf5.3_py3.9_en, and activate it, before executing theinstall.shscript.python3.9 -m venv ~/.espressif/python_env/idf5.3_py3.9_en source ~/.espressif/python_env/idf5.3_py3.9_env/bin/activate
- Download and unzip the ESP32 gateway
- Install the Python dependencies with pip:
pip3 install -r requirements.txt - Load the ESP-IDF environment variables (
export.sh) - Execute the gateway web service:
python3 gateway.py
Setting up the debugger
You must set up ports permissions for the JTAG. Your user must be in the plugdev and dialout groups (in Ubuntu/Debian/Fedora), or uucp (in Arch Linux).
You can add yourself to the group with usermod, e.g.:
sudo usermod -a -G dialout $USER
sudo usermod -a -G plugdev $USER
Another error might occur: gdb_exception_error -- libusb_bulk_write error: LIBUSB_ERROR_NO_DEVICE.
This problem happens because the user doesn't have permission to write to
the JTAG USB device, located in /dev/bus/usb/003/XXX (where XXX is a
pseudo-random number).
You can check this by doing:
ls -lah /dev/bus/usb/003
total 0
drwxr-xr-x 2 root root 180 Oct 1 11:03 .
drwxr-xr-x 6 root root 120 Oct 1 10:36 ..
crw-rw-r-- 1 root root 189, 256 Oct 1 10:41 001
...
crw-rw-r-- 1 root root 189, 256 Oct 1 10:41 022
You can see the user and group are root.
To change this, we can configure udev so that, when it mounts the JTAG
device it gives it the group permissions it typically gives to all other
devices (uucp for Arch, dialout for Ubuntu).
[!TIP] To see the device's id, run
lsusb:... Bus 003 Device 018: ID 10c4:ea60 Silicon Labs CP210x UART Bridge Bus 003 Device 022: ID 303a:1001 Espressif USB JTAG/serial debug unit ...Therefore, the vendor id for the JTAG is
303a, and the product id is1001, and for the UART10c4andea60.
Create a new /etc/udev/rules.d/99-Espressif.rules file (with sudo!):
For Ubuntu/Debian/Fedora:
# Set default permisions when mounting Espressif USB JTAG/serial debug unit and UART SUBSYSTEM=="usb", ENV{DEVTYPE}=="usb_device", ATTRS{idVendor}=="303a", ATTRS{idProduct}=="1001", GROUP="plugdev" SUBSYSTEM=="tty", ATTRS{idVendor}=="10c4", ATTRS{idProduct}=="ea60", GROUP="dialout", MODE="0660"For Arch:
# Set default permisions when mounting Espressif USB JTAG/serial debug unit SUBSYSTEM=="usb", ENV{DEVTYPE}=="usb_device", ATTRS{idVendor}=="303a", ATTRS{idProduct}=="1001", GROUP="uucp"
For more information, see the JTAG documentation
Executing the SBC gateway
[!TIP] Recommendations for a correct SBC setup:
- Use the recommended power supply for your SBC
- Use a good Ethernet Cable
- Use a Class 10 MicroSD card from a recognizable brand from Amazon or another reliable retailer
- Install the OS following the SBC manufacturer's instructions
- Create the default folder where your CREATOR projects will be saved, e.g.
~/creator - Ensure you provide the correct rights to the directory
sudo chown $USER:$USER ~/creator sudo chmod u+rwx ~/creator Connect the SBC to the Internet via Ethernet or Wifi if possible.
[!TIP] Depending on the SBC's configuration, its IP may change from time to time. Check its private IP with
ip abefore each use.
An example IP would be10.117.129.219.Check the SSH service status:
systemctl status ssh- Check your username with
whoami. Typically, it'subuntu. Connect to the SBC from your computer via SSH:
ssh <user>@<IP>[!TIP] Every time an SSH connection is made, the system will ask for a password. This can be overridden by copying your computer's SSH keys to the SBC.
- Create a new SSH key in your computer:
ssh-keygen -t rsa -b 4096 - Copy the key to the SBC
ssh-copy-id <user>@<IP>
- Create a new SSH key in your computer:
Download and unzip the SBC gateway in the SBC
Set up the gateway (inside the gateway folder):
- Create a new Python virtual environment:
python3 -m venv .venv/ source .venv/bin/activate - Install the dependencies:
pip3 install -r requirements.txt
[!IMPORTANT] Currently, there is a small issue in GDBGUI that needs to be patched as such:
sed -i "/extra_files=get_extra_files()/a\ allow_unsafe_werkzeug=True," .venv/lib/python3.12/site-packages/gdbgui/server/server.pyTo validate the changes, run:
grep -n "allow_unsafe_werkzeug" .venv/lib/python3.12/site-packages/gdbgui/server/server.py- Create a new Python virtual environment:
Execute the gateway
python3 gateway.py
User Interface

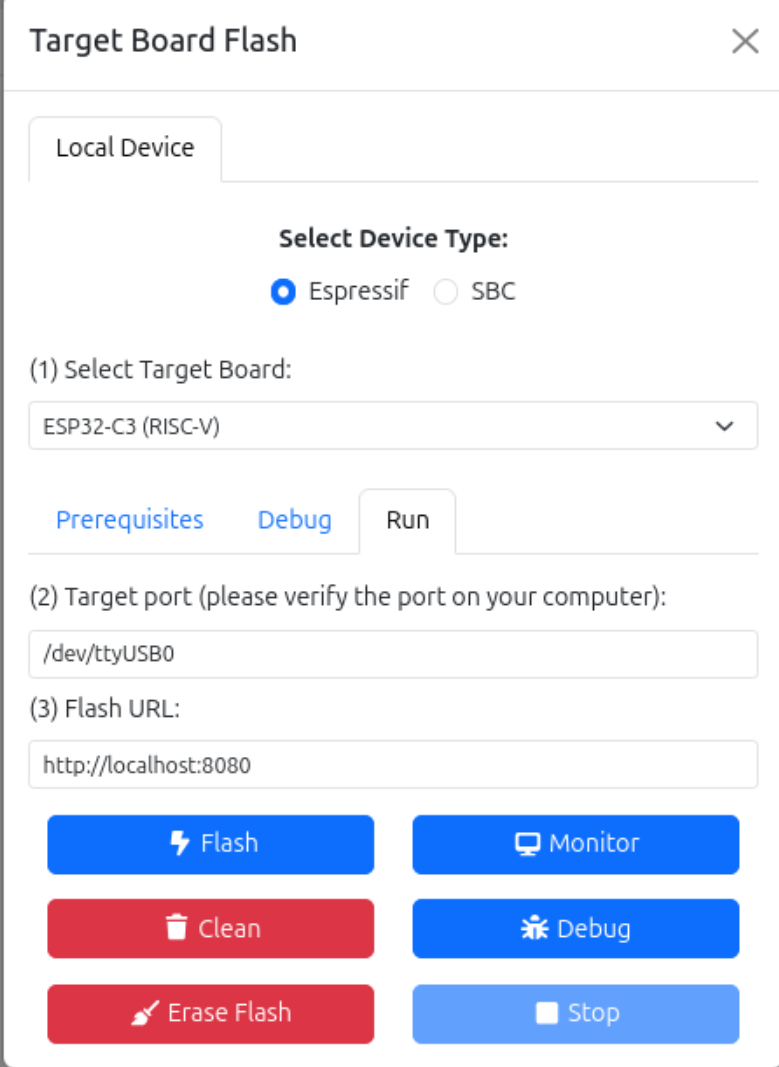

The Target Flash menu can be accessed from Tools > Flash in the simulator view.

First, select your device type (ESP32 or SBC) and target board.
Then, provide the target information:
- ESP32
- Target Port: Port of the device's UART connection.
The default values are:
- Linux:
/dev/ttyUSB0 - macOS:
/dev/cu.usbserial-10 - Windows:
COM3
- Linux:
- Target Port: Port of the device's UART connection.
The default values are:
- SBC
- Target User: User and IP address of the SBC (
<user>@<ip>) - Target Location: Location of the project folder (e.g.
~/creator)
- Target User: User and IP address of the SBC (
Finally, provide the flash URL, the URL address of the gateway. By default, https:localhost:8080.
Buttons
- Flash: Builds and flashes CREATOR's program into your development board.
- Monitor: Executes development board's flashed program. It can be stopped by using the "Stop" button or the keyboard shortcuts
Ctrl+]orCtrl+t+x. - Debug: If it's setup correctly, it will open another tab with an instance of GDBGUI ready to execute programs step-by-step
- Clean: Erases gateway's copy of the program
- Erase-flash: Erases the device's program
